FET-9HS wire eddy current flaw detector Surface eddy current flaw detector

The traits of function

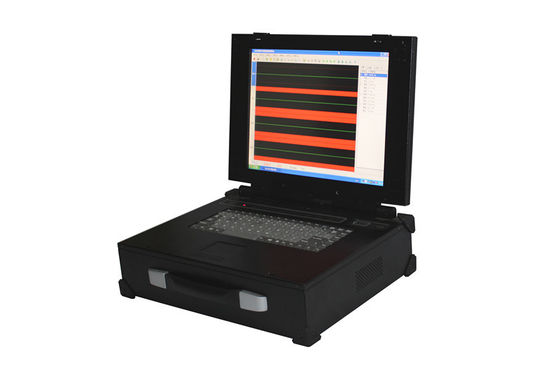

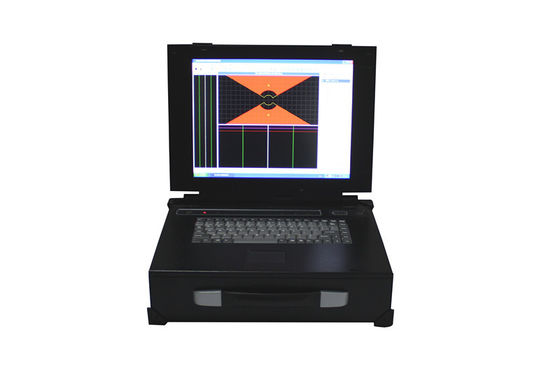

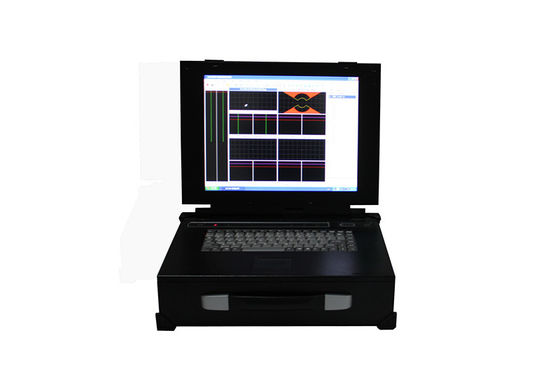

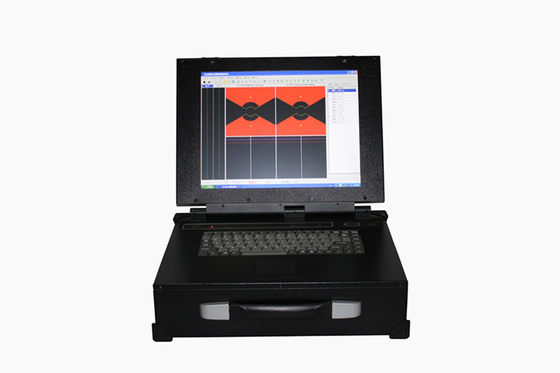

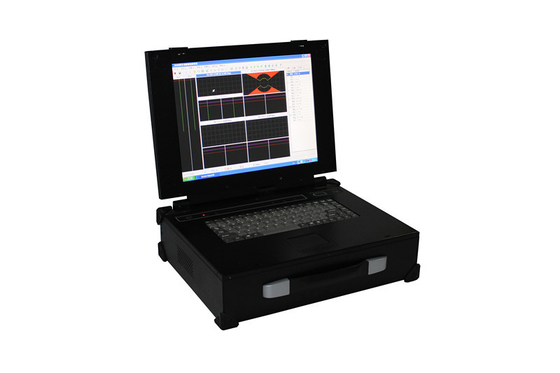

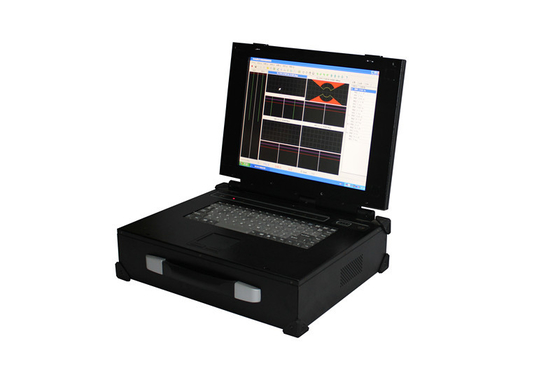

Portable FET-9HS intelligent digital eddy current flaw detector easy to carry for metal pipe bar, wire, steel pipe, steel bar, copper wire, aluminum wire online, offline flaw detection, available pipe wall, drilling plate, bearing rings, tubes, mechanical parts, orifice billet, billet, billet, and other mechanical parts of the automatic flaw detection. With a relatively independent test channel, can drive by and differential coil composition of the combined probe, detection channel at the same time for data acquisition, for detecting metal pipe, bar . Wire in the production of longitudinal cracks and transverse defects (such as barge mouth), dark meet, open cracks and other axial defects with high sensitivity. In the production process, due to faults caused by the product crack injury, road injury can be reliably detected.

Instrument parameter

1.Quickly figure/analog electronic balance

2.Unequal amplitude,dissymmetric phase position alarm region setting

3.Delayed hardware output alarm,real time hardware output alarm

4.Sound-light alarm output

5.Internal external clock option

6.Having function of end socket,end signal cut off

7.Saving mass detecting procedures and detecting data

8.Eddy current signal playback extended function,detecting amplitude,Phase position,digital value of flaw

9.Automatically record the number of flaw and its position

10.Automatically form detecting report (including the number of detecting quantity,number of qualified products ,unqualified products)

11.Blanking displayed coefficient

12.China-English operating ,online help

13.Background solution of rectangular coordinate system and Polar coordinate system

14.Automatic calendar ,time displayed
