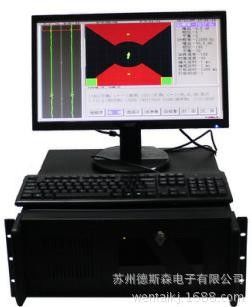

64 Hz-4MHz Eddy Current Separator Intuitive And Simple Operation

Instrument characteristics
1, the same size of steel classification and steel identification (material rapid sorting).
2, the same size, the same heat treatment process state of the workpiece hardness detection and rapid differentiation (hardness rapid sorting).
3, for the raw materials of carbon structural steel, the carbon content of the material can be measured (carbon).
4. Effectively distinguish and identify the defects of materials and workpieces after heat treatment
5, the depth of hardening layer detection and sorting.
6, the mechanical properties (such as strength) of the workpiece after heat treatment are identified and sorted.
7, the distinction of different heat treatment states of the same material.
8, application conditions: the same size of the regular, irregular parts can be applied
9, sorting accuracy: a, carbon: 0.03%C b, hardness: Brinell ± 10HB, Rockwell ± 1HRC C, hardening layer depth: 0.2mm.
10, detection speed: 0.1 seconds a piece
11, working power supply: AC 220V±10%, 50Hz
12, the use of conditions: ambient temperature -10 ℃ ~+ 40 ℃, relative humidity <75%
13. Detection channel: 1
14, frequency range: 64 Hz ~ 4 MHz
15, gain range: 0 ~ 90.0dB continuous adjustable, step: 0.5Db
16, phase rotation: 0 ~ 359° continuous adjustable, step: 1 deg
17, gain ratio: (Y/X) 0.1 ~ 10.0
18, fast digital/analog electronic balance
19, non-constant amplitude, asymmetric phase alarm area setting
20, a variety of display modes: impedance, time base
21, digital filter: low-pass (0Hz ~ 2000Hz), high-pass (1.0Hz ~ 10.0Hz)
22, delay hardware output alarm, real-time hardware output alarm
23, sound and light alarm output
24, with a delay alarm, 0.001 ~ 20.000 seconds.
25, automatic balance time: 1 ~ 100 seconds
26, internal and external clock selection
27, can store a large number of various detection procedures
28, display mode: solid line, fade
29, blanking display coefficient: 1 ~ 100
30, rectangular coordinate system and polar coordinate system background selection
31, automatic calendar, time display
32, AC 220V±10%, 50Hz/60Hz
