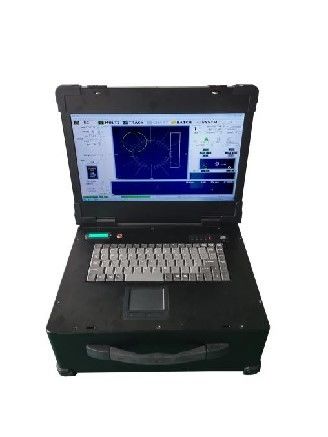

High Precision Eddy Current Separator High Speed Intelligent Digital

 Function Parameters

•  Frequency range :100Hz-5MHz
• Gain :0-99db, step of 0.1db
•  Phase: 0-360 degrees, step length is 1 degree
• Mode: Manual/automatic
•  Automatically match multiple drives
• Multi-mode digital filtering: LP/HP/BP/BP-SSF
•  Large, small and medium (ABC) three kinds of alarm
•  Alarm area radius is adjustable: 0-99, step length is 1.
•  amplitude, line, circle, bit multiple alarm Settings
•  The Angle of the alarm area is adjustable: the step is 1 °.
• I/O expansion interface
•  Electronic oscilloscope
• Power supply: 220V (-20% ~ +20%)
• Simulate electronic balance
•  NG Signal output interface
•  Can expand multiple channels
•  Flaw detection speed: one piece per second
•  Multiple production modes to choose from
•  Record export Real-time record monitoring
•  Flaw detection statistical data
•  Chinese and English (customizable)
•  Set ABC three sorting alarm boxes to distinguish between high, medium and low hardness
•  The distinction of the same size and the identification of steel types (quenched parts and unquenched parts quick sorting).
• Hardness detection and rapid differentiation of the workpiece with the same size and the same heat treatment process state (hardness fast sorting).
•  Sorting of the depth of the hardened layer, quenching or not.
•  To effectively distinguish and identify the defects of the material and the workpiece after heat treatment
• dentify and sort the mechanical properties (such as strength) of the workpiece after heat treatment.
•  Differentiation of different heat treatment states of the same material.
•  Application conditions: Regular and irregular parts of the same size can be applied
