xProduct Details
| Ratio Of Gains | (Y/X)0.1～10.0 | Frequency Scope | 64 Hz～2 MHz,satisfying Detection Of Multiple Kinds Of Metal Material |
|---|---|---|---|
| The Scope Of Gains | 0～99.0 DB ,continuously Adjust ,stepping Is 0.5db | Phase Position Rotation | 0～359°,continuously Adjust,stepping Is 1 Degree |
| Detecting Speed | 0-50m/min | Digital Filtering | Low Pass(0Hz～2000Hz)high Pass(0Hz～2000Hz) |
| Highlight | portable Coating Thickness Gauge,fet-9hs Coating Thickness Gauge,50m/min digital paint gauge |
||
Product Description

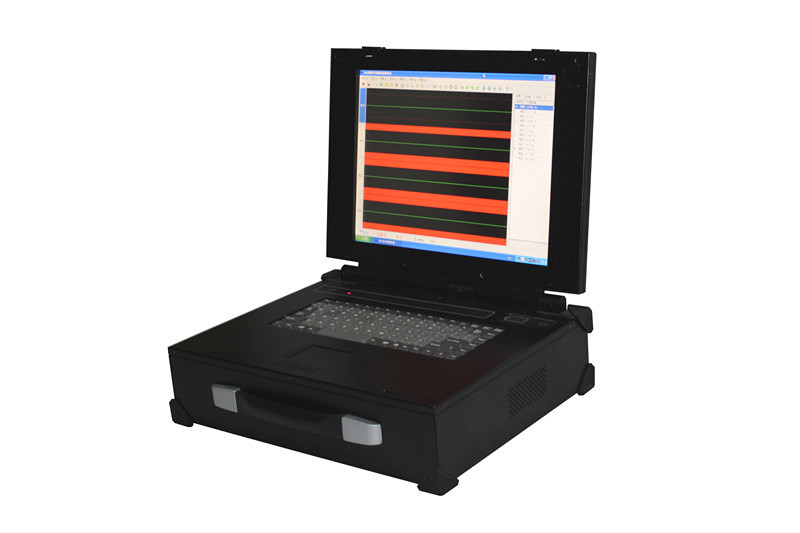

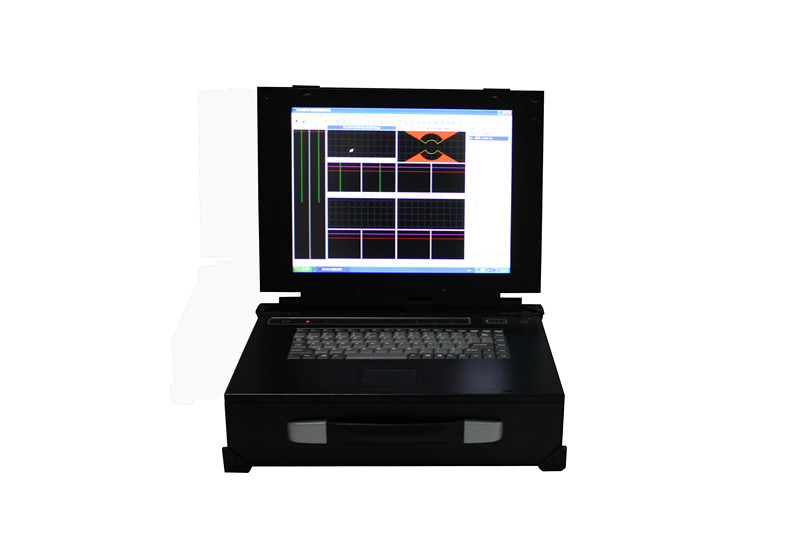

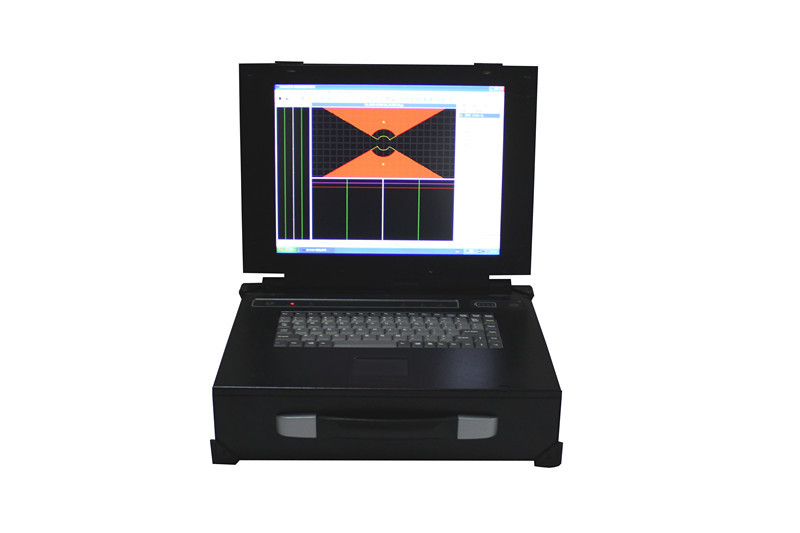

The FET-9HS is a professional portable device for detecting flaws in metal wires and cables. Using advanced eddy current technology, it provides real-time impedance plane diagrams and time-based analysis on screen.
Key Benefits
- Versatile Detection: Works with all types of metal materials
- Fully Digital Design: Stores multiple standard detection procedures
- User-Friendly Interface: Easy to configure and operate
- Flexible Connectivity: Compatible with various field equipment
Technical Specifications
Detection Capabilities
- Detection channels: 1 (expandable)
- Frequency range: 64 Hz - 2 MHz
- Detection speed: 0-50 m/min
- Battery life: 6-8 hours (lithium battery)
Performance Features
- Gain range: 0-99.0 dB (0.5 dB steps)
- Phase rotation: 0-359° (1° steps)
- Gain ratio (Y/X): 0.1-10.0
- Probe drive levels: 1-8
Smart Functionality
- Digital filtering (low/high pass: 0-2000 Hz)
- Automatic flaw detection and reporting
- Data storage for procedures and results
- Multilingual interface (English/Chinese)
- Real-time and delayed alarm outputs
Display Options
- Impedance and time-based views
- Rectangular and polar coordinate systems
- Real-line and blanking display modes
