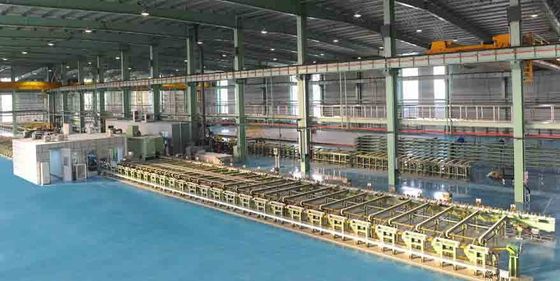

Automatic Pipe And Bar Inspection System For Automatic Flaw Detection Of Mechanical Parts

FET-99 flaw detector has a test frequency range of 64 Hz ~ 2MHz, which can adapt to the detection requirements of various metal wires, and because of the all-digital design, it can establish a number of standard testing procedures or expert systems in the instrument, which is convenient for users to call when changing product specifications.
The FET-99 can be fitted with a pass-through probe with very low coupling gap requirements, as well as a combined flat probe or a saddle-type probe the size of a cigarette pack. The instrument is suitable for almost all eddy current probes produced by manufacturers.
The testing process is roughly as follows:
1, probe fixed.
2, steel pipe into the detection probe automatic detection.
3, automatic alarm when there is a defect and spray on the color of the defect mark automatically to the unqualified box.
4, no defect, no alarm and no spray mark automatically to the qualified box.
Functional features:
1. Automatically record and display the number and location of defects
2, dynamic fixed length marking control
3. Synchronous alarm output of internal and external clock control
4, adjustable probe drive (excitation) strength
5, high-precision end, end and tail signal cutting function
6, high-precision real-time, delay alarm output
7, non-constant amplitude phase/amplitude alarm domain
8, fast digital/analog electronic balance
9, cartesian coordinates, polar coordinates and other background coordinate selection
10, with memory track delay blanking function
11, mass storage of various detection procedures, data, charts and other inspection results
